Need to replace the head assembly on a purification system? We've got you! Let's gets started on replacing it! This article applies to model: EPS1000. If you have a Reverse Osmosis system, please click here.
Disassemble

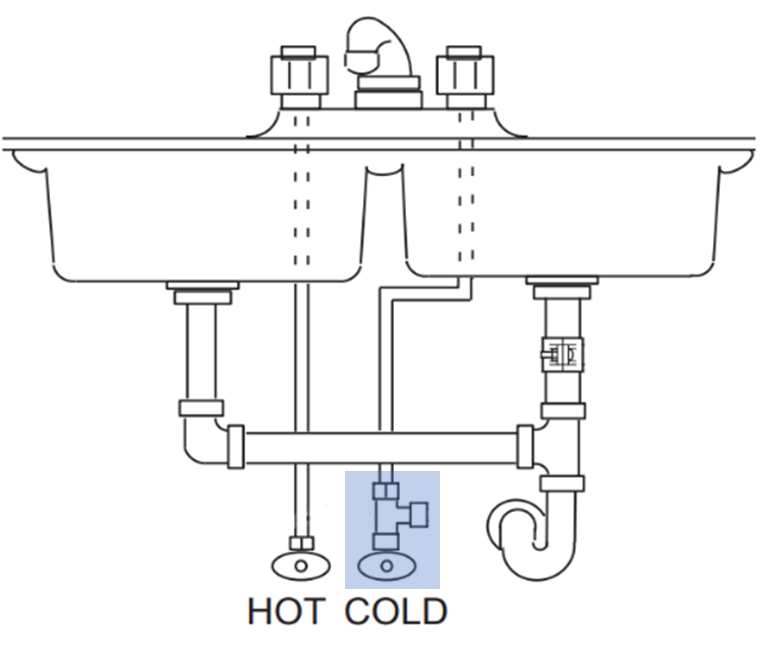

1. First, turn the cold-water supply off to the system.
2. Open/turn on the filtered water faucet to depressurize.
3. Remove the yellow water supply hose and the blue hose.
4. Remove all the filter cartridges.
Reassemble
1. Make sure the hose ends don't have any scratches or tears on them. If needed, give the hoses a new square cut so they'll connect securely.
2. Attach the hoses to the new head assembly. Make sure to push them in all the way.
3. Attach the filters.
4. Close the water faucet, turn the cold-water supply back on and watch for any leaks.
5. Lastly, if you attached new filters, purge them by opening the faucet and let the water run for 10 minutes. Once done, you're good to go!
Please let us know if this article was helpful by voting below.
