Making sure the system is programmed correctly is key to getting the best softened water experience. Ready to program a water softener? Follow the instructions below to begin. You can also find these instructions in the Owner's Manual.
Click on model below to expand directions.
ECR / ERR / ERRC / eVOLUTION
1. Plug the power supply into the outlet. You'll hear a beep, followed by the a logo and model information. Next, the screen will walk you through setting up some basic information:

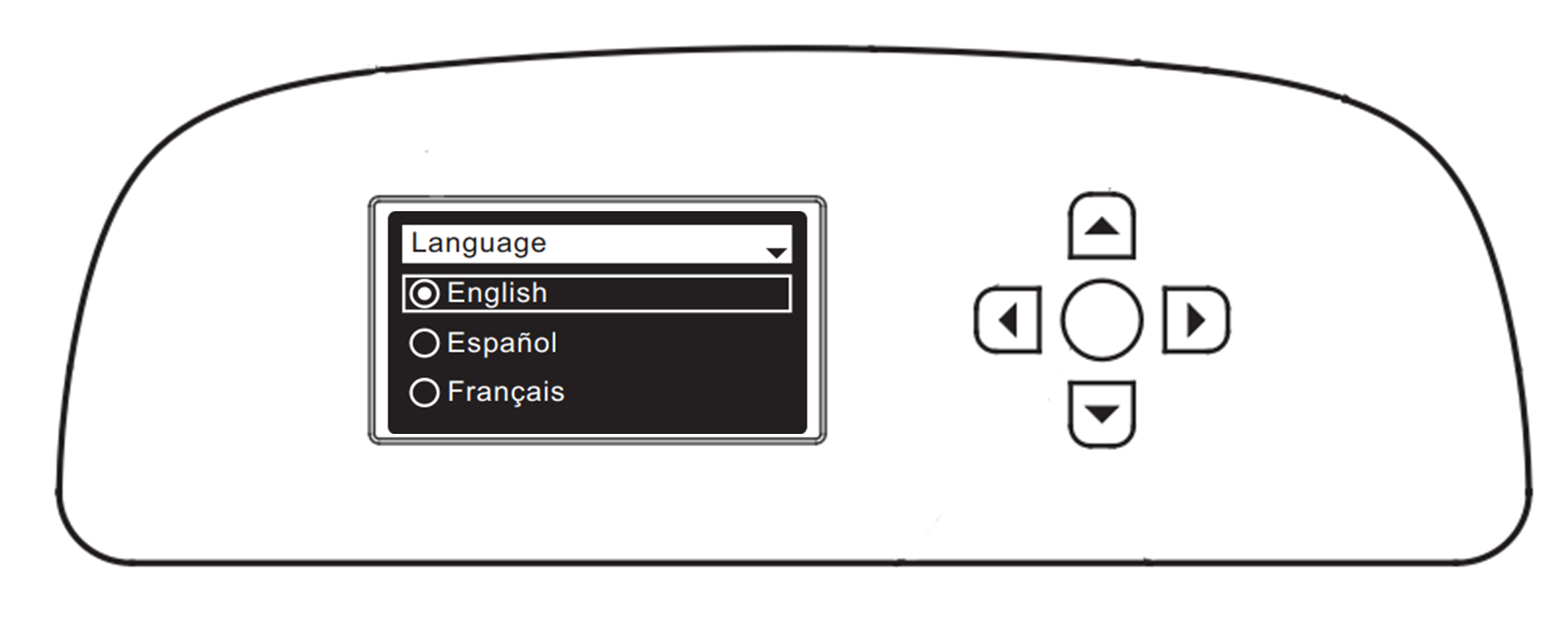

2. Language - highlight your desired language with the Up/Down arrows. Press Select to confirm.
3. Wireless Setup - this can be done later, scroll down to Skip for now, and press Select.
4. System Units - choose between English or Metric, and press Select.
5. Current Time - use the Up/Down arrows to set the current time, double checking a.m. or p.m. Press Select to confirm.
6. Hardness - the softener communicates in GPG. Press Select to confirm.
7. Salt Level (two-tank models only) - match the salt level on the screen with the volume in the tank. Press Select.
8. Iron Level - the conversion factor is 3 grains per 1 ppm of clear water iron. Press Select.
9. Setup Complete! Press Select to Run System.
Return to the Softener/Refiner Installation instructions if needed.
ESD2750 / ESD1152 / ESS1152

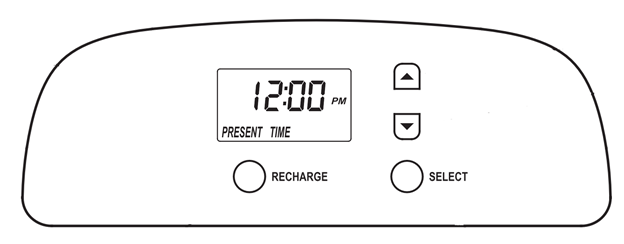

1. Plug the power supply into the outlet. You'll hear a beep and a model code will display for a few seconds, followed by the 'Present Time' Screen.
2. Present time - go ahead and use the Up/Down arrows to set the correct time. Be sure to check AM/PM. Then press Select.
3. Hardness - the softener communicates in GPG. If the water supply contains clear water iron, add 5 to the hardness number for each 1 ppm of iron. Press Select.
4. Set Recharge Time - program for a time when the customer will not be using water (i.e. 2 AM). Press Select to return to the home screen.
Return to the Softener/Refiner Installation instructions if needed.

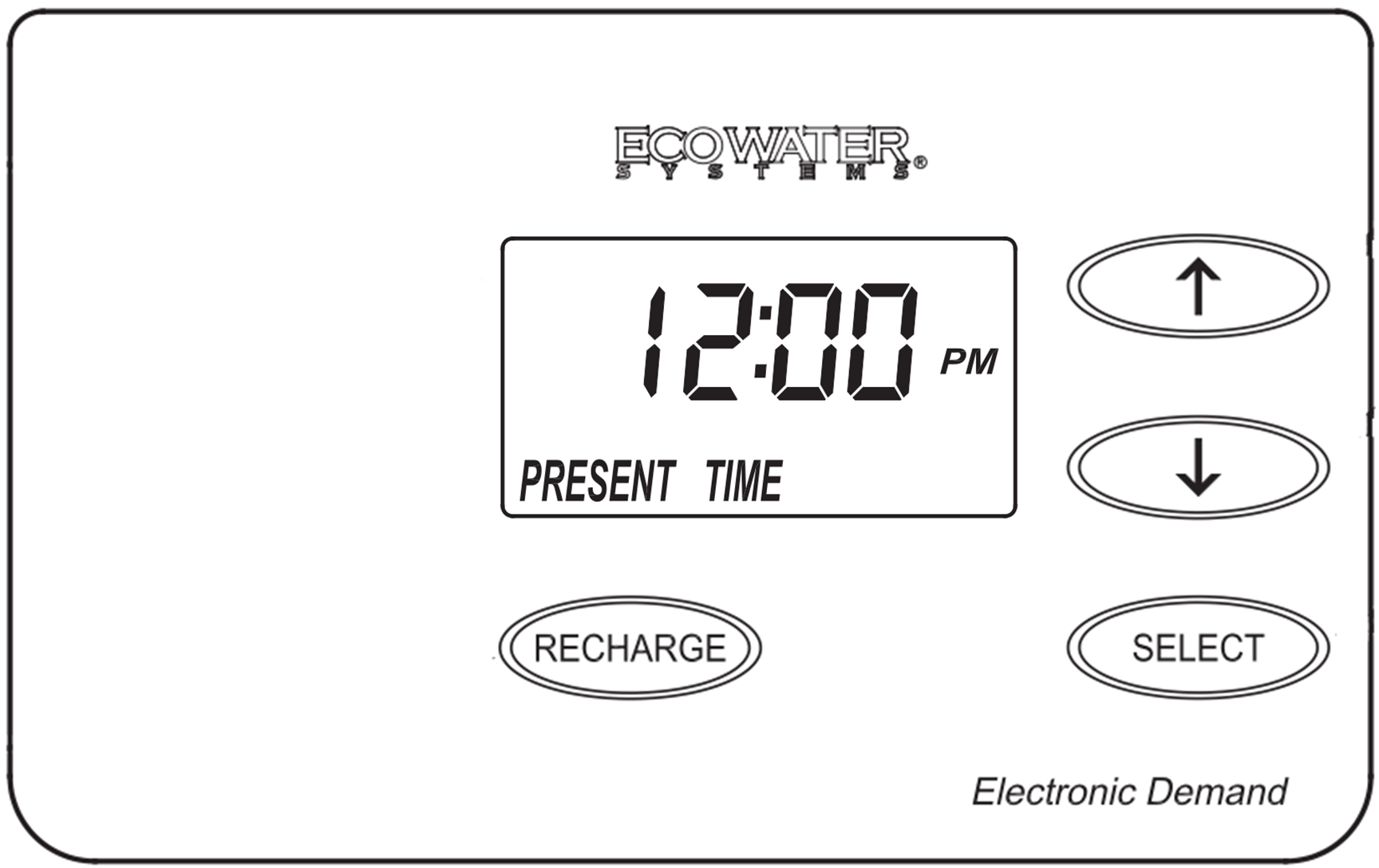

EEC1502 / EP6130
1. Plug the power supply into the outlet. You'll hear a beep and a model code will display for a few seconds, followed by the 'Present Time' Screen.
2. Present time - go ahead and use the Up/Down arrows to set the correct time. Be sure to check AM/PM. Then press Select.
3. Hardness - the softener communicates in GPG. If the water supply contains clear water iron, add 5 to the hardness number for each 1 ppm of iron. Press Select.
4. Set Recharge Time - program for a time when the customer will not be using water (i.e. 2 AM). Press Select to return to the home screen.
Return to the Softener/Refiner Installation instructions if needed.
