Check out the video and chart below, explaining the differences between the old and new brine valve assemblies.

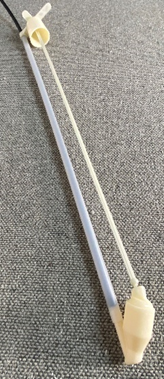

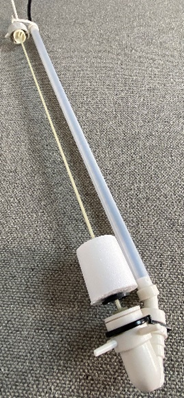

| New | Old |
| One piece |
Multiple pieces to assemble |
| Uses industry standard ball check | Uses float check |
|
Easier troubleshooting - the entire piece can be replaced instead of taken apart and cleaned |
Each piece is taken apart and cleaned during troubleshooting |
| Forward and backward compatible |
Important to Know
- The brine valve is forward and backward compatible and gets installed the exact same way the previous brine valve did.
- The new brine valve cannot be taken apart and cleaned.
- If the homeowner has a ferrule nut connection at the venturi, it is best practice to order a ferrule nut when preplacing the brine well. These can be challenging for customers to remove otherwise.
