Which device are you connecting?
Connecting an iOS Device
Install the Hydrolink Plus® RO Module
*Do not load batteries until prompted*

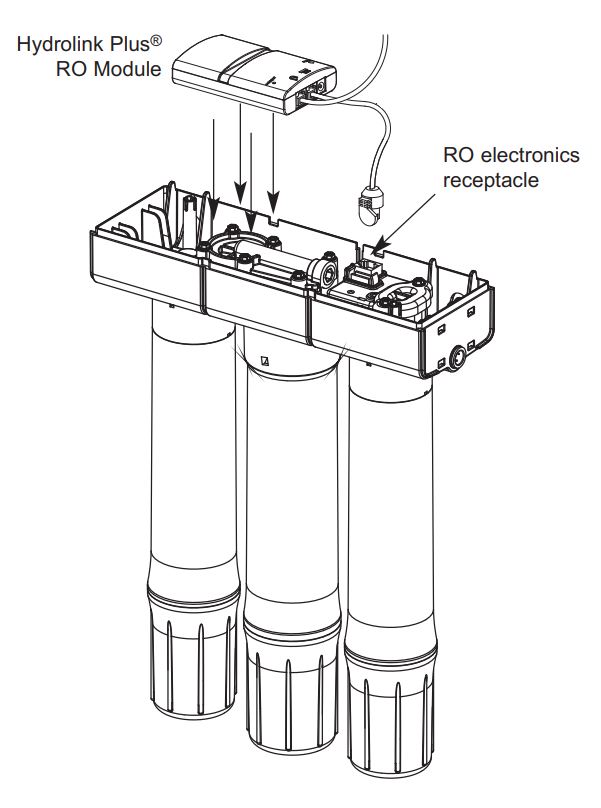

1. Plug the Hydrolink Plus® cable into the receptacle on the top of the RO assembly (pictured). Connect the other end into the Hydrolink Plus® RO module.
2. Plug wire from the faucet into the Hydrolink Plus® RO Module receptacle.
3. Install three (3) AAA size batteries ensuring correct orientation. Do not install batteries if using external DC supply to power module. The green status light will blink once on the module and the manifold.
Download and Install the App

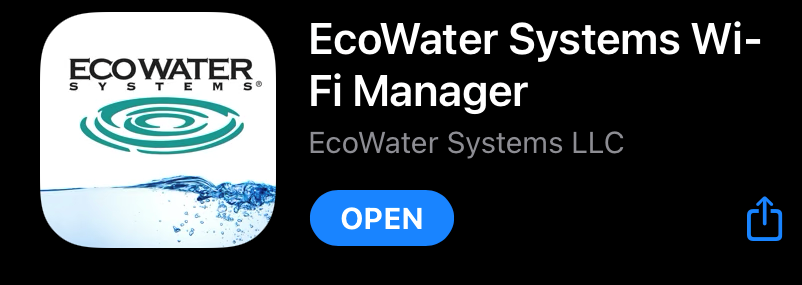

1. Open the App Store and download the EcoWater Systems WiFi Manager App:
2. Login to the App using the Dealer Username and Password.
3. Locate the Customer's name on the 'My WiFi Customers' list. If you do not see their name, you can Create an Account for them, or they can download the app on their own device and create an account.
4. Click the 'Add a System' button.

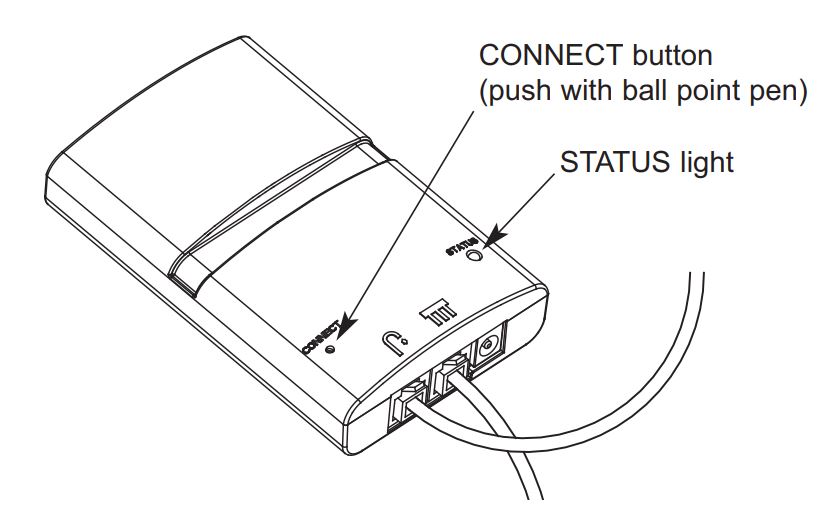

5. Hold the 'Connect' button on the Hydrolink Plus® RO module using a ballpoint pen or paperclip. The status light will flash amber. The unit will be connect mode for two minutes.
Connect to Wifi
1. Open the iOS phone Settings app. Tap on 'WiFi' and select the network with the name 'SHERO -' and click 'Next'.
2. Open the EcoWater Systems app again and select the customer's home WiFi network.
3. Enter the customer's network password (if required). Click 'Next'.
4. Open the iOS Settings app again and open the 'WiFi' tab. Select the customer's home WiFi network.
5. Open the EcoWater Systems app again and select the customer's home WiFi network and click 'Next'.
Basic System Settings
1. Enter a nickname to identify the RO system.
2. Choose the Date format if desired, and click 'Next'.
3. Enter the customer's email address or phone number if they would like to receive alerts and click 'Next'. Choose your alerts preferences and click 'Next'.
4. The new RO dashboard will display, with the nickname at the top and various data points below.
5. At this point, you can Connect a Customer to a Dealer, if the customer wishes to do so.
Connecting an Android Device
Install the Hydrolink Plus® RO Module
*Do not load batteries until prompted*
1. Plug the Hydrolink Plus® cable into the receptacle on the top of the RO assembly (pictured). Connect the other end into the Hydrolink Plus® RO module.
2. Plug wire from the faucet into the Hydrolink Plus® RO Module receptacle.
3. Install three (3) AAA size batteries ensuring correct orientation. Do not install batteries if using external DC supply to power module. The green status light will blink once on the module and the manifold.
Download and Install the App

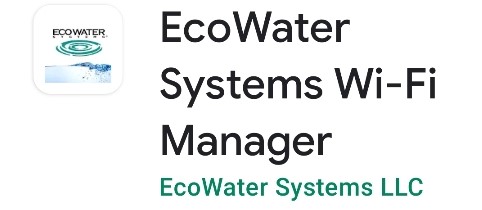

1. Open the Play Store and download the EcoWater Systems WiFi Manager App:
2. Login to the App using the Dealer Username and Password.
3. Locate the Customer's name on the 'My WiFi Customers' list. If you do not see their name, you can Create an Account for them, or they can download the app on their own device and create an account.
4. Click the 'Add a System' button.
5. Hold the 'Connect' button on the Hydrolink Plus® RO module using a ballpoint pen or paperclip. The status light will flash amber. The unit will be connect mode for two minutes.
Connect to Wifi
1. Select the network with the name 'SHERO -' and click 'Next'.
2. Open the EcoWater Systems app again and select the customer's home WiFi network.
3. Enter the customer's network password (if required). Click 'Next'.
4. Wait while the system automatically connects you to the customer's home WiFi. It will confirm the Hydrolink® module is connected, and the device is registered.
Basic System Settings
1. Enter a nickname to identify the RO system.
2. Choose the Date format if desired, and click 'Next'.
3. Enter the customer's email address or phone number if they would like to receive alerts and click 'Next'. Choose your alerts preferences and click 'Next'.
4. The new RO dashboard will display, with the nickname at the top and various data points below.
5. At this point, you can Connect a Customer to a Dealer, if the customer wishes to do so.
